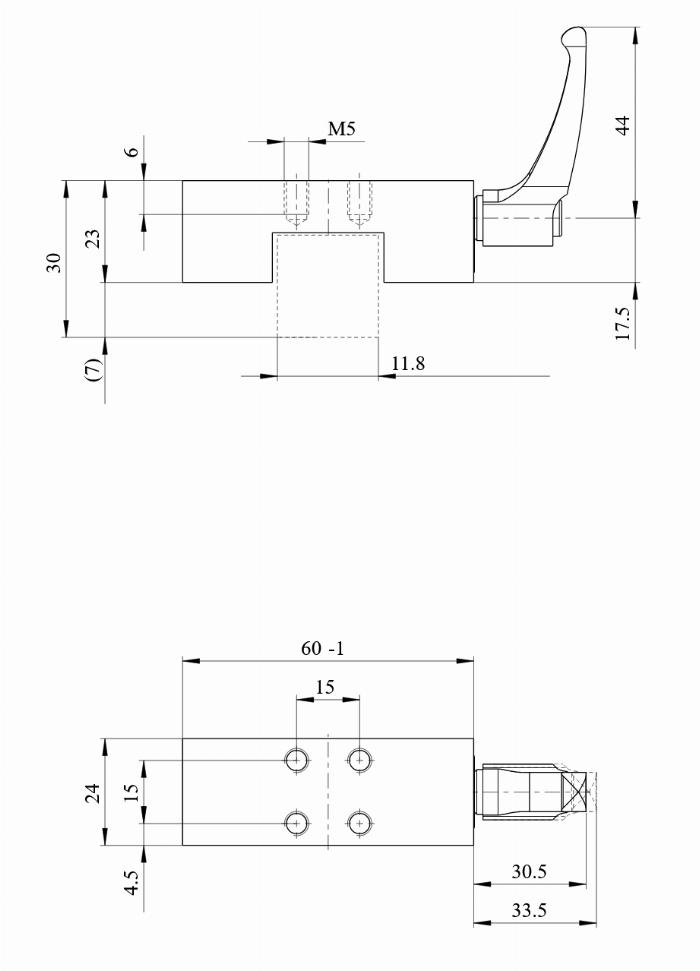

Hand clamping element MC 20

Art. No.: 9366 On Sale (Best Seller)

131.84€ Excl. VAT
1 × 131.84€/pcs.
131.84€ incl. 0% VAT
Special local overstock price applied Local overstock price for 0 of 0 pcs. - rest at regular price
Pack size
Quantity (number of packs)
= 1 pcs. total
Products description
Note:
Can be used for ball bearing rails.
When using the HRC20FN-SZ-V0-N-BLOCK and HRC20FL-SZ-V0-N-BLOCK carriage, NO distance plate is required for height compensation.
Enables tool-free opening and closing (bistable) simply by turning the clamping lever. The element is maintenance-free and designed for 50,000 static clamping cycles.
Weight: 0,2Kg

Assembly note:
Temperature application range 0 - 70 °C
Ensure a rigid adjacent construction.

Technical Data:
Holding force: 1200 N
Tightening torque: 5 Nm
Positioning accuracy: +/- 0.02 mm
Weight: 0.22 kg
Mounting direction: from the front
Max. clamping length: 24 mm
Files
PDF

Katalog-DE_lg-01-p71-de_1.pdf

PDF

ARCHRCERC Catalog(EN)_1.pdf
